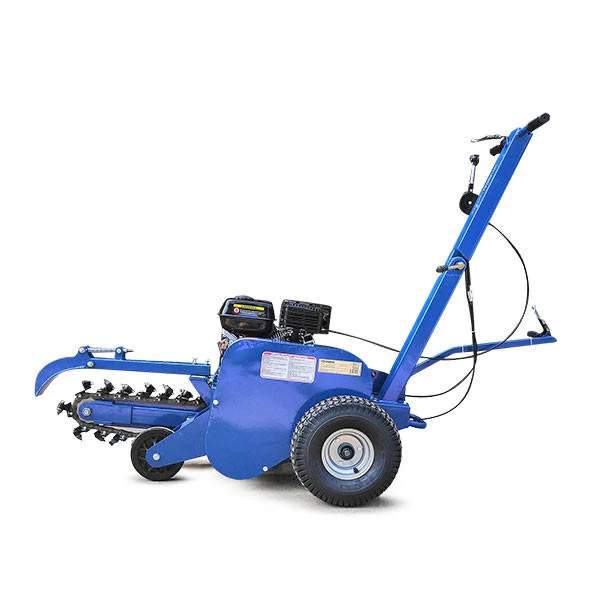

Hyundai 210cc 7hp Petrol Trencher (HYTR70)

The HYTR70 is a compact yet powerful petrol trencher, designed for efficiency in residential and light commercial projects. Powered by a 7hp Hyundai 4-stroke engine, this machine is specifically engineered for laying narrow pipes, cables, and garden drainage. Its slim 700mm profile makes it exceptionally maneuverable, allowing it to pass through standard garden gates and operate in confined spaces where larger excavators simply cannot reach.

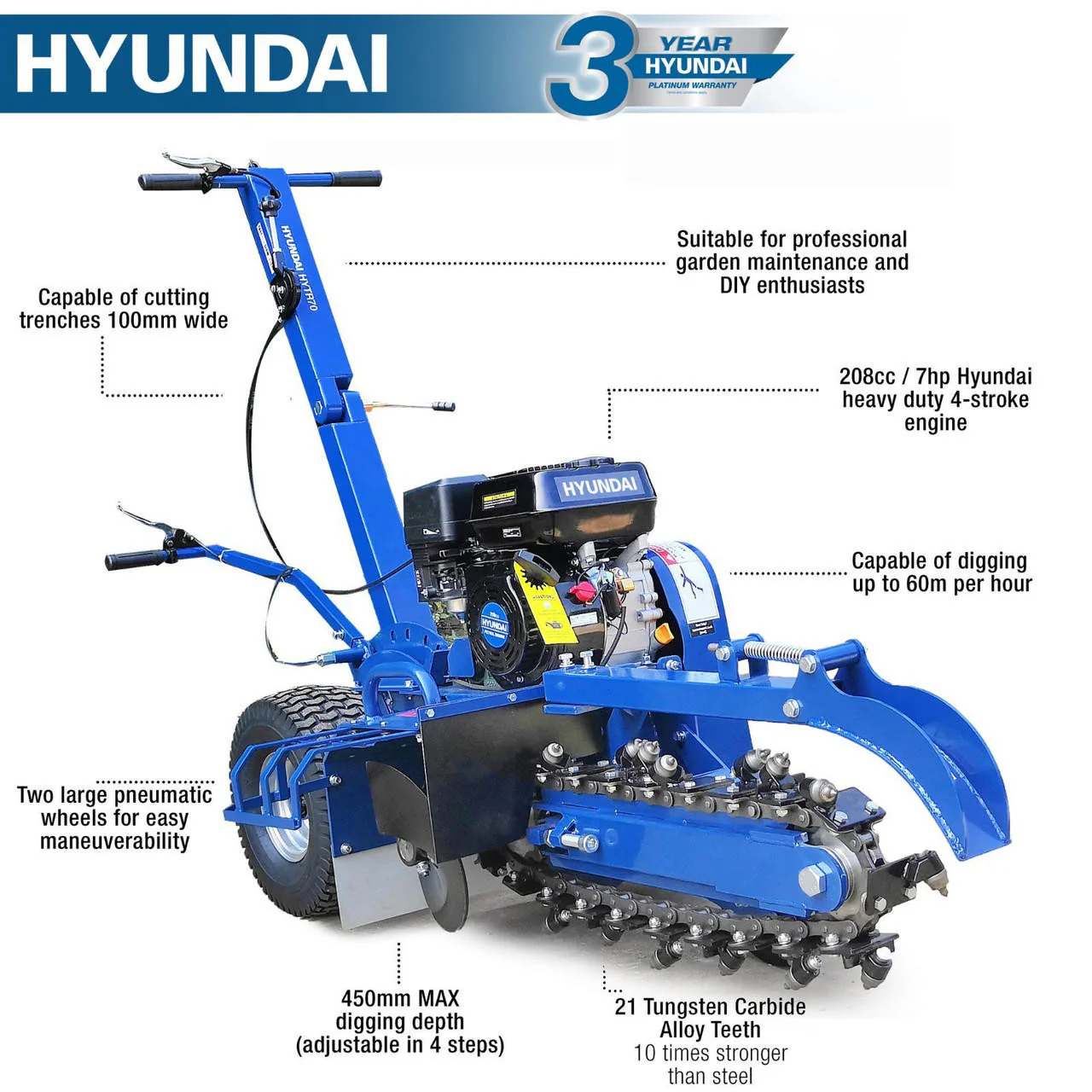

Key Features & Benefits

• Tungsten Carbide Cutting Teeth: Features 21 replaceable teeth tipped with mining-grade tungsten carbide. This material is 10 times harder than steel, ensuring the chain can cut through compacted soil and clay with ease.
• 4-Stage Depth Adjustment: The cutting bar is easily adjustable to four distinct depths—150mm, 250mm, 350mm, and 450mm—giving you precise control over the trench profile.
• Side-Mounted Auger: As the chain digs, an integrated auger clears the spoil to the side of the trench. This prevents soil from falling back into the cut and ensures a clean channel for immediate utility installation.
• Ergonomic Controls: Both the wheel brake and the engine throttle are located directly on the handlebars, allowing the operator to manage the machine's speed and stability without shifting their grip.
• Enhanced Safety: For operator protection, the unit is fitted with a "dead-man" engine kill switch, which shuts down the motor instantly if the operator loses control or releases the handles.
• Heavy-Duty Mobility: Large 15-inch pneumatic tires and adjustable soft-grip handlebars allow the 145kg unit to be moved over rough terrain with minimal effort.

Technical Specifications

• Engine: 210cc / 7hp Hyundai IC210 (4-Stroke)
• Start Method: Recoil Pull Start
• Trench Depth: 150mm, 250mm, 350mm, 450mm
• Trench Width: 100mm
• Trench Capacity: Up to 60 meters per hour
• Chain Hardware: 1600mm length / 21 Tungsten Carbide Teeth
• Fuel Capacity: 3.6L (Petrol)
• Dimensions: 1760mm (L) x 700mm (W) x 900mm (H)
• Nett Weight: 145kg (165kg Gross)
• Sound Level: 108dB
• Warranty: 3 years
