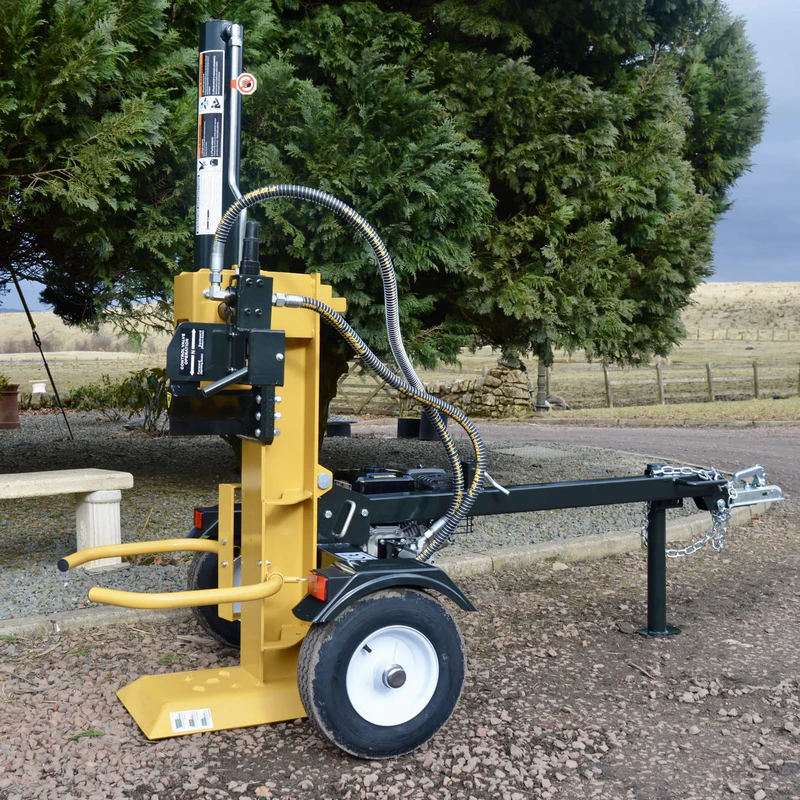

Rock Machinery 22ton Value Series Log Splitter

£1,590.0020% VAT incl.

0 Reviews
Be the first to review this product

Rock Machinery 22ton Value Series Log Splitter

A high-capacity petrol splitter designed for both domestic and light commercial use. Powered by a 6.5hp Loncin engine, it delivers 22 tons of splitting force and features a dual-position frame that operates both horizontally and vertically for handling heavy rounds.

22ton max splitting force
23″ max log length
16″ tyres ( not for road use )
12 second cycle time
6.5 JD engine
11 gpm two stage pump
7″hardened steel splitting head
auto return valve

Please note that shipping quoted is for mainland UK only. For Highlands and Islands, please contact us for a shipping quote prior to placing your order.

Opens a popup QR code to scan on your Phone

Model:RCK-VS-22

22-Ton V-Series Log Splitter

The 22-Ton V-Series (Value Series) is a heavy-duty, petrol-powered hydraulic log splitter engineered for high-volume firewood production.

Designed for users who require significant force and speed, this unit serves as a robust all-rounder for both large-scale domestic properties and light commercial timber operations. With a massive 22-tonne pressure rating, it effortlessly processes dense hardwoods and large-diameter rounds that smaller units cannot handle.

Key Features

Massive 22-Tonne Splitting Force: Provides the industrial-grade power necessary to tackle the most stubborn, knotted timber with ease.
High-Flow Hydraulic System: Equipped with an 11 GPM (gallons per minute) two-stage pump. This system automatically shifts between high-speed travel for positioning and high-pressure force for the actual split, optimizing efficiency.
6.5hp JD Petrol Engine: A reliable and powerful engine that ensures consistent performance across remote sites where electrical power is unavailable.
Hardened Steel Cutting Head: Features a 7" hardened steel splitting head designed to maintain a sharp edge and structural integrity under immense hydraulic pressure.
Fast 12-Second Cycle Time: Includes an auto-return valve that resets the ram automatically, significantly reducing downtime between logs and increasing hourly output.
Extended Log Capacity: Accommodates logs up to 23" in length, providing the flexibility needed for large outdoor boilers and commercial wood burners.
Rugged Site Mobility: Fitted with 16" tires and a robust chassis, allowing for easier movement across uneven terrain, fields, or farmyards (note: tires are for off-road/site use only).

Engineered for Efficiency and Safety

The 22-Ton V-Series is designed with a horizontal configuration that incorporates a solid log cradle. This ensures that logs are held securely in place during the split, preventing them from falling and improving overall operator safety. The integrated work area provides an ergonomic platform for managing timber, making it an essential tool for year-round wood processing in professional maintenance sheds or agricultural settings.

Technical Specifications

Splitting Force: 22 Tonnes
Engine: 6.5hp JD Petrol
Pump: 11 GPM Two-Stage
Max Log Length: 23" (approx. 584mm)
Cycle Time: 12 Seconds
Splitting Head: 7" Hardened Steel
Tires: 16" (Off-road only)
Dimensions (LxWxH): 220 x 120 x 118 cm
Weight: 230 kg

Why Choose the 22-Ton V-Series?

For professionals and estate managers, this splitter represents a high-value investment in productivity. While compact enough to be maneuvered around a yard, its 230kg build and dual-stage pump put it in the class of industrial machinery. It is built to handle the physical rigors of daily use, ensuring a reliable supply of firewood for even the most demanding heating requirements.
