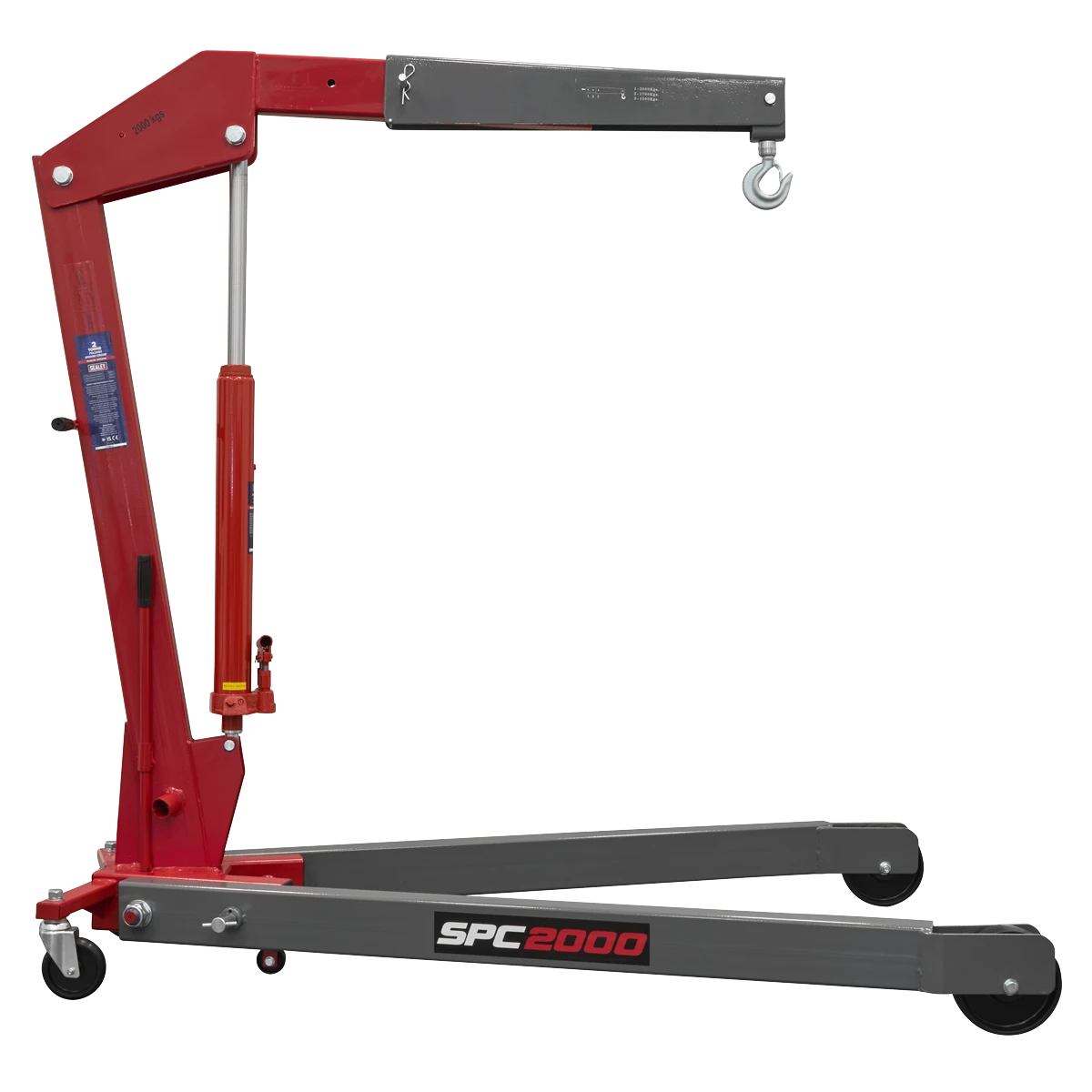

Folding Engine Crane 2 Tonne (SPC2000) – Heavy-Duty Professional Series

The SPC2000 is a premier, industrial-grade folding engine crane designed for the most demanding automotive and engineering environments. Combining a massive 2-tonne maximum lifting capacity with a space-saving folding design, it provides the structural integrity of a stationary workshop crane with the flexibility of a mobile unit. Its low-profile design and rotating pump handle make it the primary choice for removing heavy engines and machinery in tight workshop spaces.

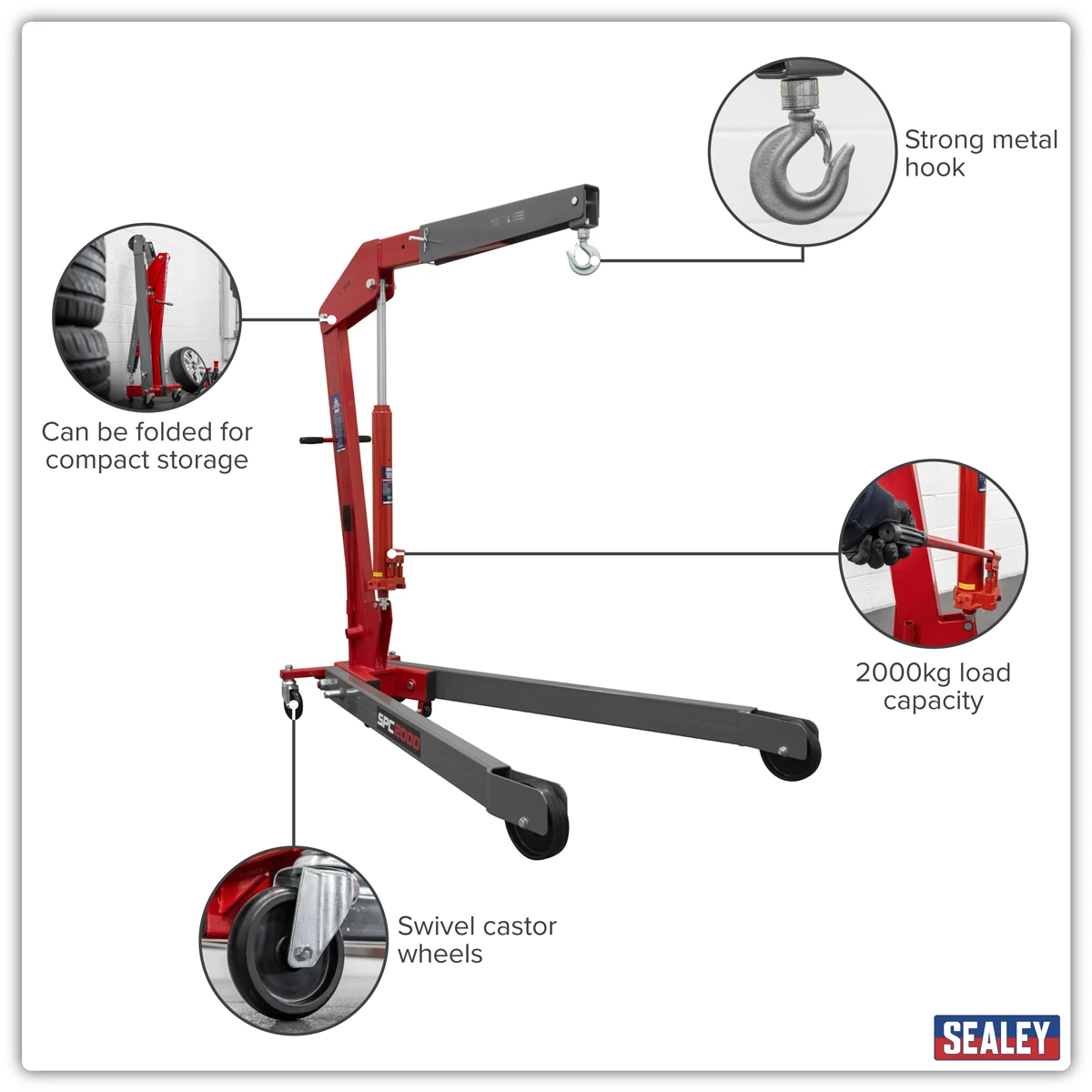

Key Features & Benefits

• Heavy-Duty Lifting Power: Capable of lifting up to 2000kg, with a reinforced frame and a heavy-duty forged hook to ensure maximum safety and durability during high-stress maneuvers.
• Low-Access Chassis: Features ultra-low profile legs with a height of only 80mm at the wheels. This allows the crane to slide easily under low-slung modern vehicles and chassis where standard cranes would fail to fit.
• 3-Position Extendable Jib: The lifting arm is adjustable to three specific lengths, allowing for increased reach or increased capacity depending on the job:
  • Position 1: 1320mm reach / 2000kg capacity
  • Position 2: 1460mm reach / 1700kg capacity
  • Position 3: 1610mm reach / 1500kg capacity
• 300° Rotating Pump Handle: The hydraulic pump is fitted with a revolving handle, allowing the operator to pump from almost any angle. This is a critical feature when working in cramped garages or alongside workbenches.

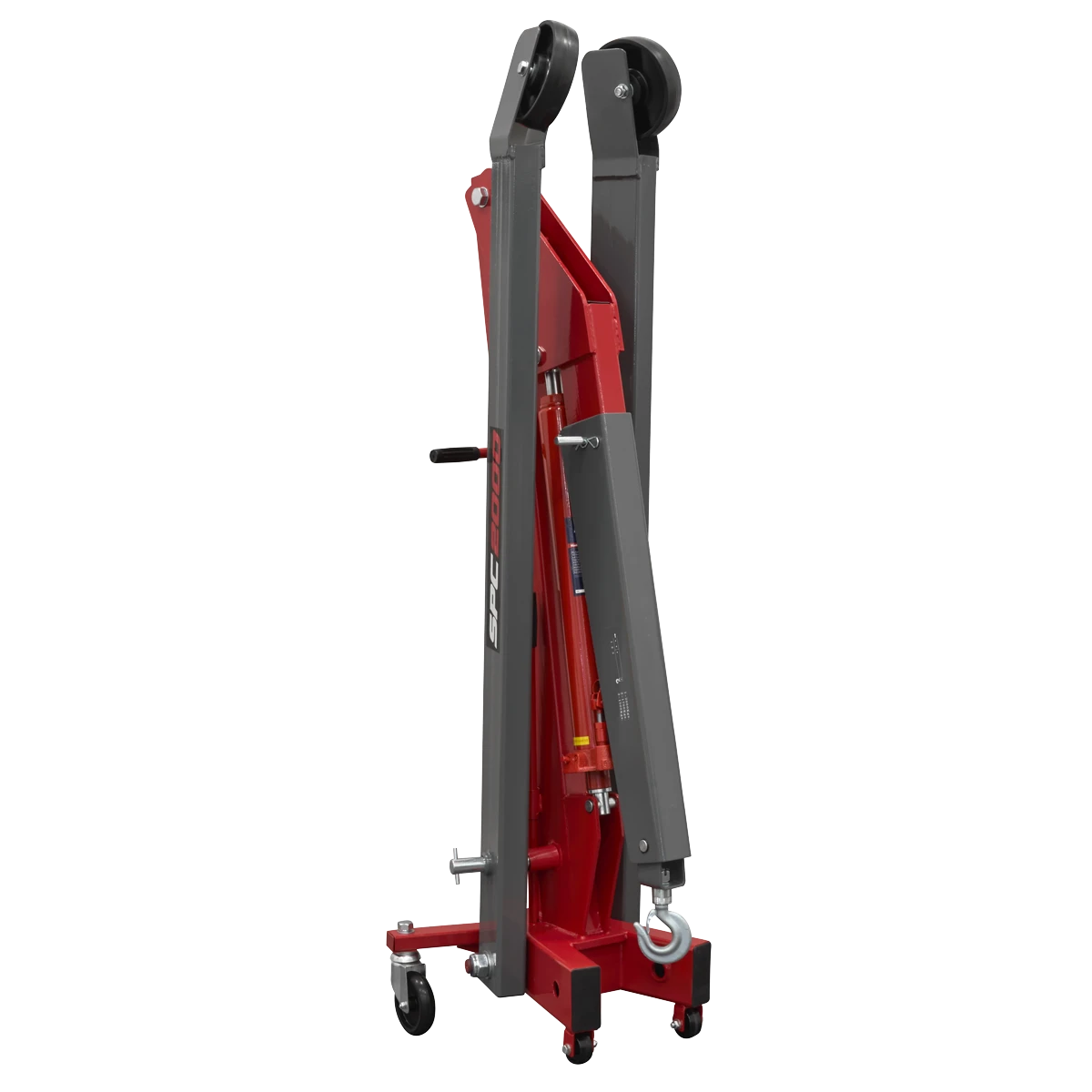

• Fast-Folding Design: Engineered for efficiency, the crane folds down quickly for compact storage or easier transportation, minimizing its footprint when not in use.
• Exceptional Lift Height: Depending on the jib position, the crane can reach a maximum lifting height of up to 2730mm, providing ample clearance for high-sided engine bays and workbench transfers.

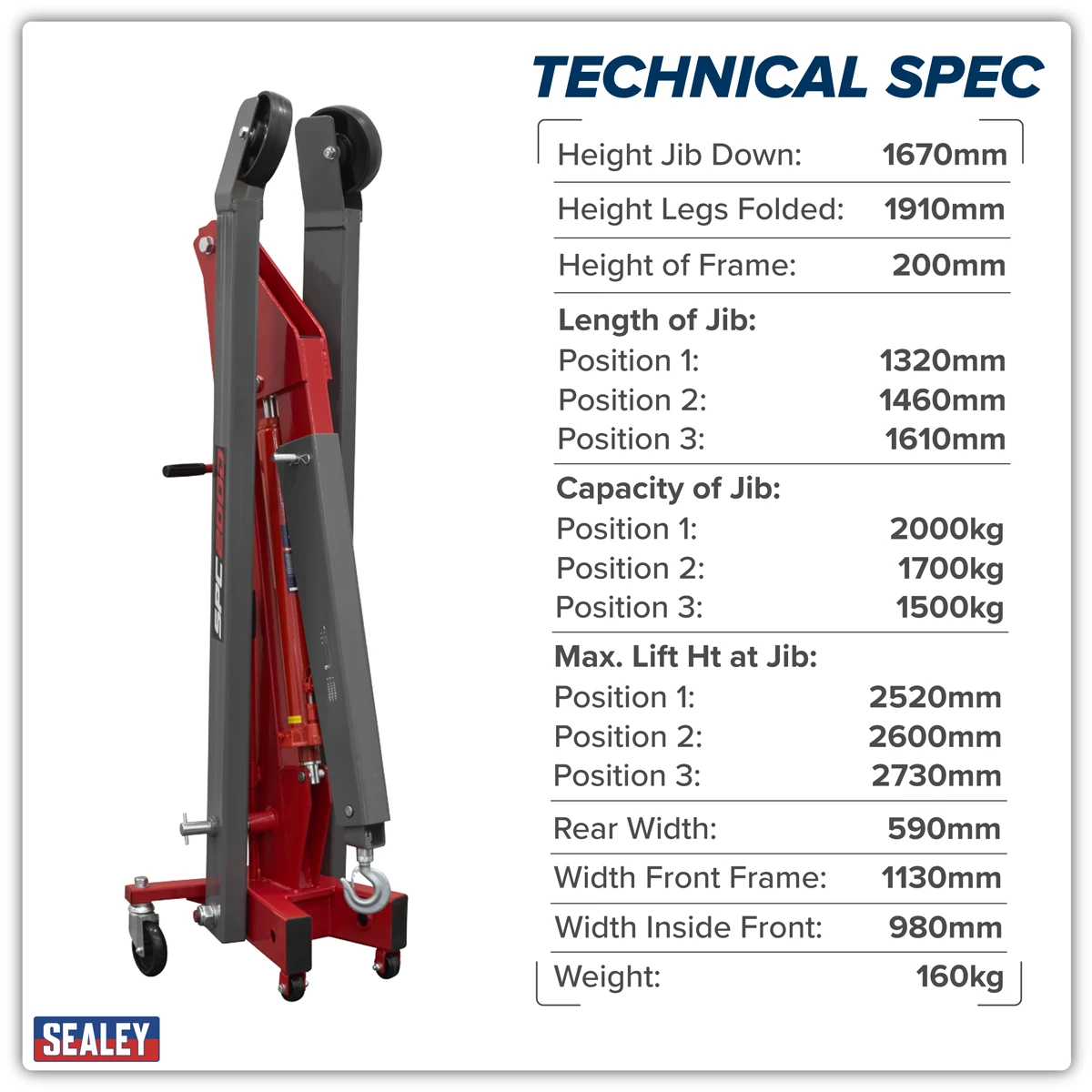

Technical Specifications

• Max Capacity: 2000kg (2 Tonne)
• Jib Positions: 1320mm (2000kg), 1460mm (1700kg), 1610mm (1500kg)
• Max Lift Height: 2520mm to 2730mm (depending on jib position)
• Leg Height: 80mm (at wheels) / 200mm (frame)
• Rear Width: 590mm
• Inside Front Width: 980mm
• Nett Weight: 160kg
• Guarantee: 3 Years
