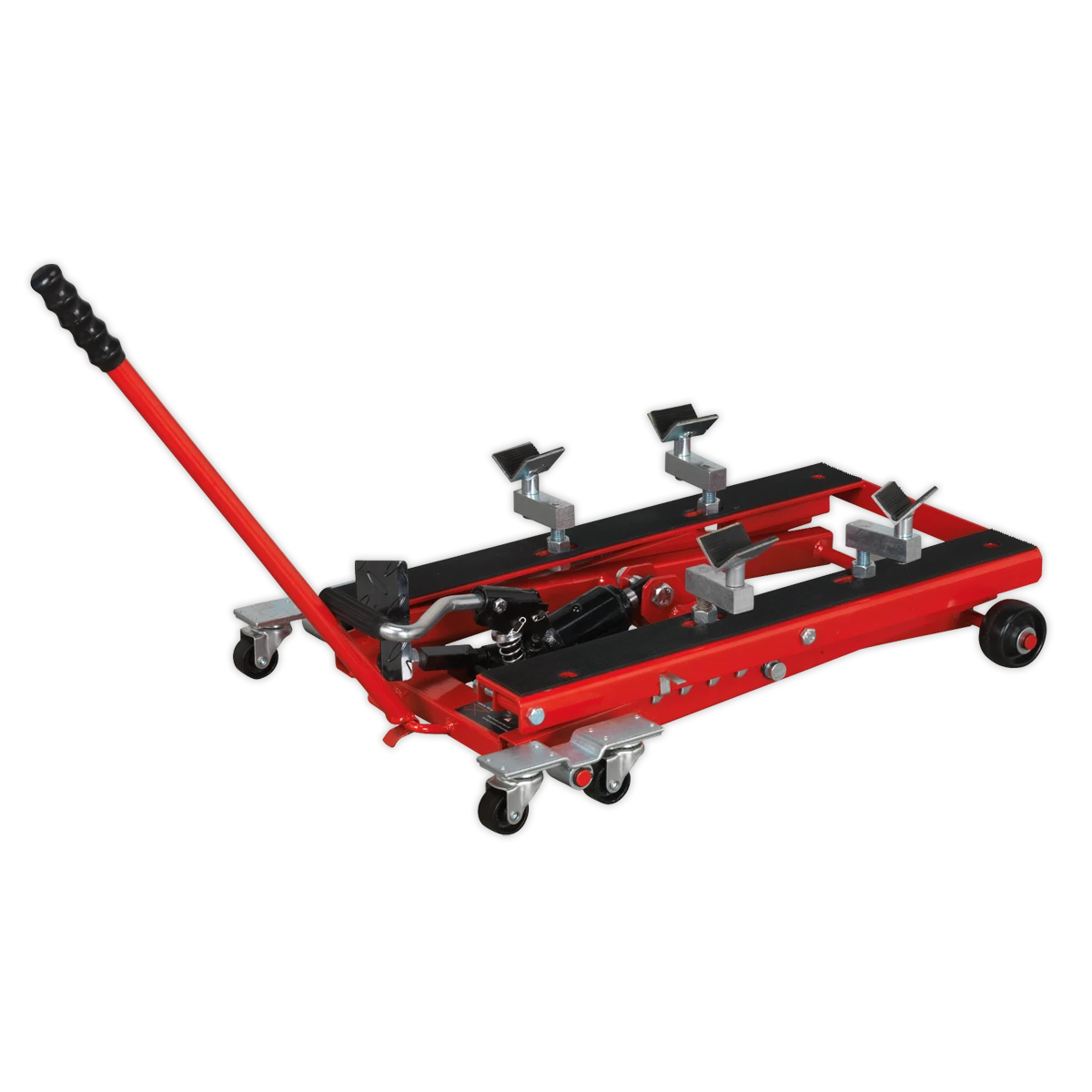

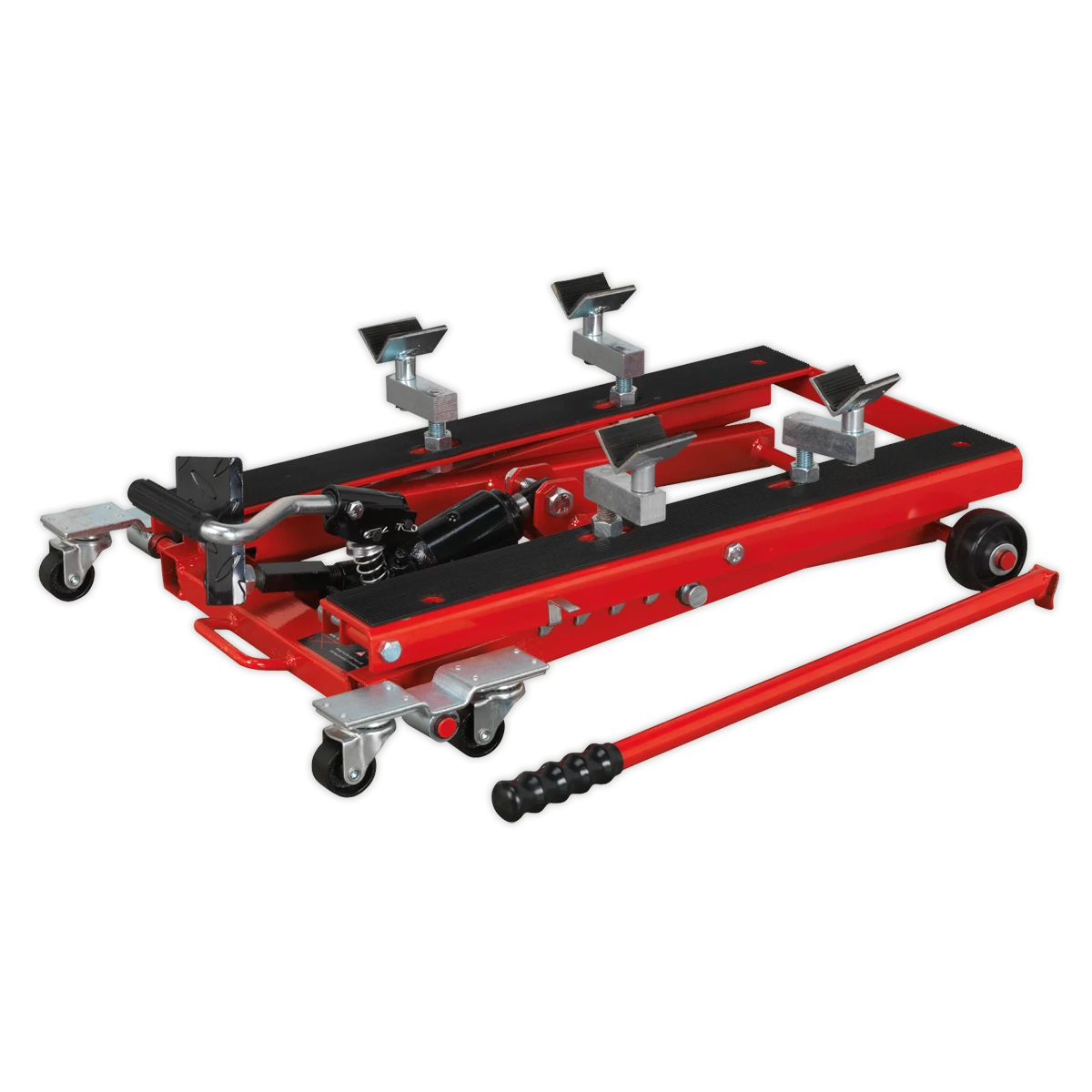

Hydraulic Motorcycle & Quad Scissor Lift 500kg Capacity (MC4500)

The MC4500 is a versatile, heavy-duty steel scissor lift designed for comprehensive motorcycle and quad maintenance. Powered by a robust bottle-jack style hydraulic unit, this lift is engineered to raise the vehicle entirely off the ground. This provides the necessary clearance to remove both wheels, front forks, steering assemblies, rear swing arms, and even the engine, making it an essential tool for deep mechanical work.

Key Features & Benefits

• Complete Component Access: The lifting design allows for the simultaneous removal of front and rear suspension and wheels, providing total access for major repairs.
• Highly Portable: Designed for flexibility, this unit can be used anywhere with a hard, level floor, making it the primary choice for both workshop use and mobile motorcycle mechanics.
• Dual Height Configurations: The lift can be used with or without the included frame supports, allowing it to accommodate various ground clearances and bike geometries.
• Quad & ATV Compatible: With a wide lifting platform and a 500kg capacity, it is stable enough to support larger Quads and ATVs in addition to standard motorcycles.
• Stable Scissor Action: The steel scissor mechanism provides a vertical, linear lift, ensuring the center of gravity remains consistent throughout the elevation process.
• Integrated Frame Supports: Adjustable supports help balance the machine and provide additional height when working on bikes with recessed frames or lower exhaust systems.

Technical Specifications

• Capacity: 500kg
• Min. Lift Height (without Supports): 110mm
• Max. Lift Height (without Supports): 400mm
• Min. Lift Height (with Supports): 200mm
• Max. Lift Height (with Supports): 508mm
• Maximum Frame Dimensions (W x D): 680 x 360mm
• Nett Weight: 27.12kg
