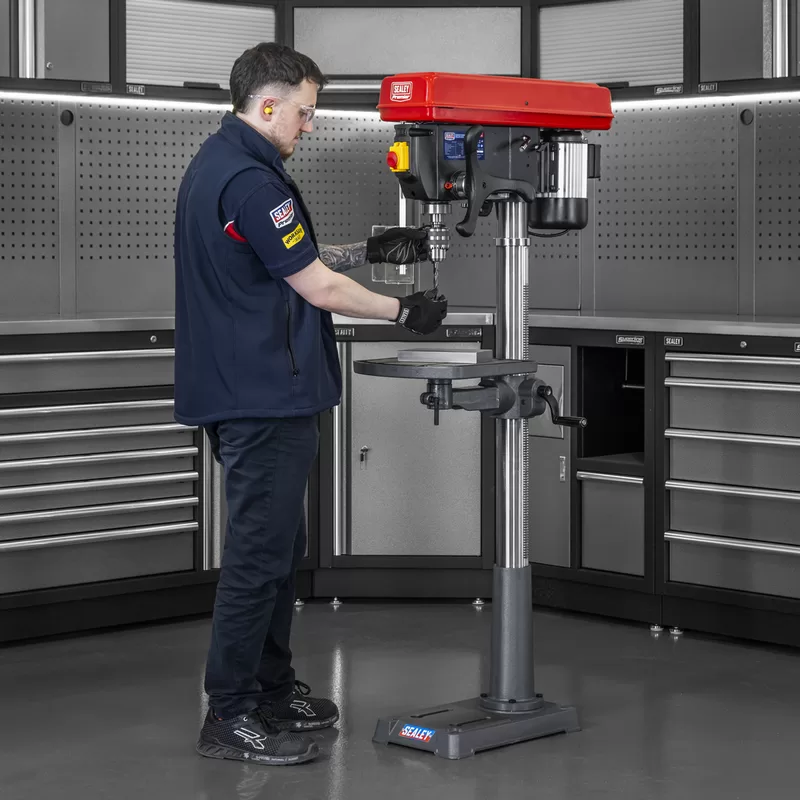

Premier 16-Speed Floor Standing Pillar Drill 750W/230V (PDM240F)

The Sealey PDM240F is a heavy-duty, professional pillar drill designed for high-capacity drilling in industrial and educational environments. Part of the Premier range, it combines a powerful 750W motor with a 16-speed drive system, offering the torque and versatility needed to handle large-diameter bits and tough materials with precision.

Key Features & Benefits

• Heavy-Duty Power: Features a durable aluminium-bodied motor designed for long-term reliability and efficient heat dissipation during extended professional use.
• 16-Speed Versatility: With a broad speed range from 160 to 3000rpm, this drill allows you to perfectly match the rotational speed to the material and drill bit size, ensuring cleaner holes and longer tool life.

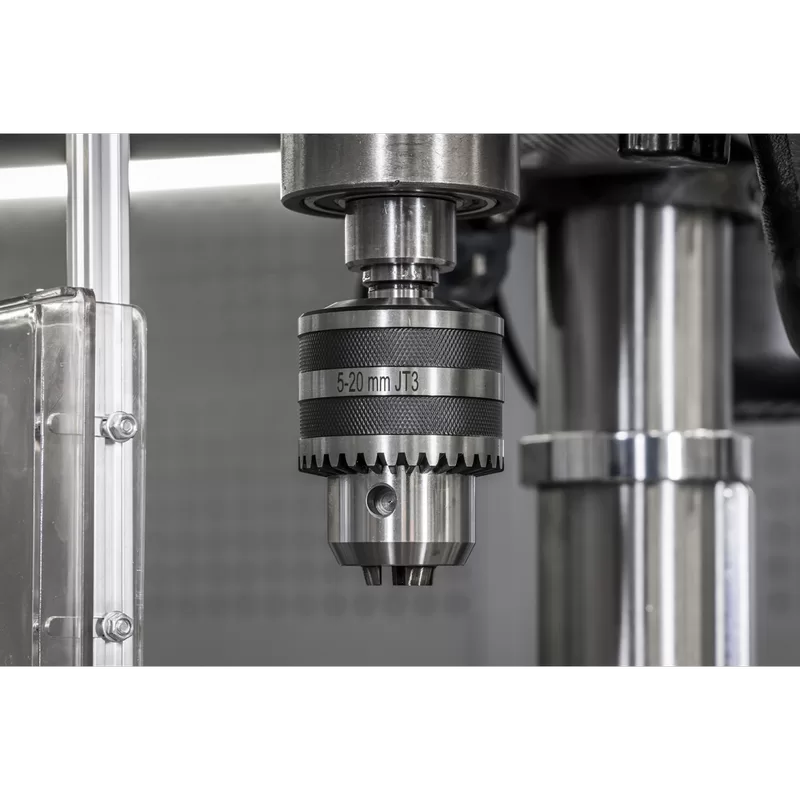

• Large Drilling Capacity: Equipped with a 20mm (3/4") capacity chuck and a No. 3 Morse Taper (MT3) spindle, this model is built for serious metalworking and heavy-timber projects that exceed the limits of standard workshop drills.
• Precision Handling: The large, square worktable (356 x 356mm) features a precision rack and pinion adjustment system, allowing for smooth and accurate height control under heavy loads.
• Safety & Compliance: Engineered for safety, it includes a no-voltage release (NVR) switch and a microswitch-protected belt cover that prevents operation while open. These features meet the strict requirements for insurance approval in educational workshops.
• Integrated Lighting: Features an integral worklight (requires a 60W E27 bulb) to illuminate the drilling area, ensuring maximum visibility and accuracy for detailed layouts.
• Extended Reach: A significant 216mm spindle-to-column distance (512mm swing) provides the clearance necessary for working with larger workpieces.

Technical Specifications

• Motor Power (Input/Start): 750W (1000W)
• Supply: 230V
• Number of Speeds: 16
• Speed Range: 160 - 3000 rpm
• Drilling Capacity (Chuck Size): 20 mm
• Spindle Nose Taper: MT3
• Spindle Travel: 80 mm
• Overall Height: 1635 mm
• Spindle Centre to Column: 216 mm
• Swing: 512 mm
• Working Table Surface Size: 356 x 356 mm
• Nett Weight: 76 kg
• Guarantee: 3 Year*
