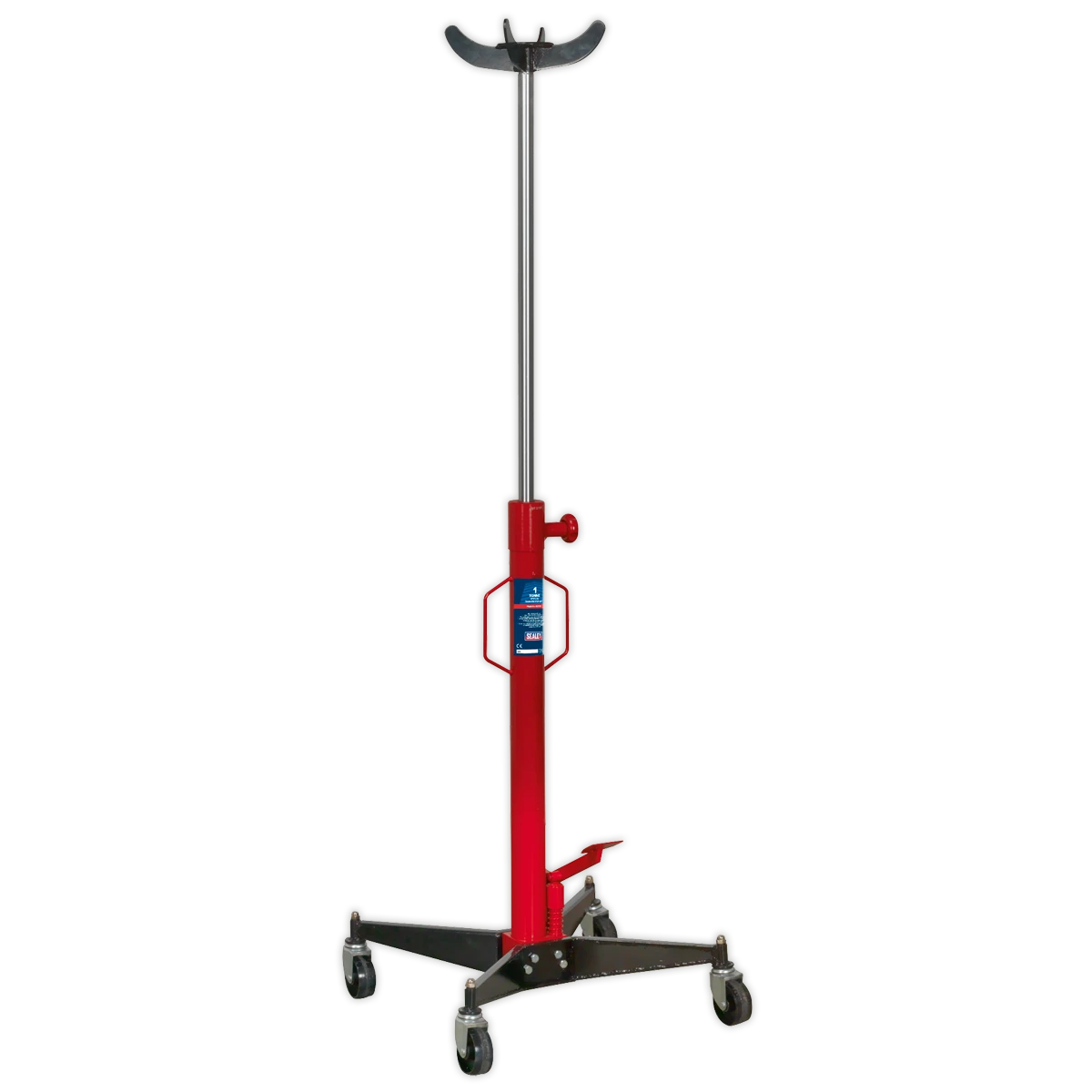

Vertical Transmission Jack 1 Tonne (1000ETJ)

The 1000ETJ is a heavy-duty lifting solution designed for the safe removal and installation of large gearboxes, transmissions, and transfer boxes on commercial vehicles and heavy 4x4s. Doubling the capacity of the standard 500kg models, this jack provides a robust and stable platform that can handle loads up to 1000kg while maintaining precise height control through its foot-operated hydraulic system.

Key Features & Benefits

• 1-Tonne Lifting Capacity: Engineered for heavy-duty applications, making it suitable for larger truck gearboxes and heavy drivetrain components.
• Hands-Free Control: The hydraulic pump is operated via a foot pedal, allowing the technician to use both hands to stabilize, align, and secure the transmission.
• Dead Man's Safety Release: Features a spring-loaded release valve that automatically closes if the handle is released. This ensures controlled lowering and prevents the load from dropping unexpectedly.
• High-Reach Performance: With a maximum saddle height of 1910mm, it is perfectly suited for use under vehicles raised on professional 2-post or 4-post workshop lifts.
• Rugged Maneuverability: Despite its 40.5kg weight, the unit remains highly mobile on four heavy-duty swivel castors, allowing for exact positioning in tight workshop bays.
• Accessory Compatible: While supplied with a fixed saddle, it is designed for use with the ADT5 Adjustable Gearbox Support (sold separately) for handling irregularly shaped components.

Technical Specifications

• Capacity: 1000kg (1 Tonne)
• Minimum Saddle Height: 1100mm
• Maximum Saddle Height: 1910mm
• Base Size: 535mm x 585mm
• Ram Extensions: 1
• Nett Weight: 40.5kg
• Safety System: Spring-loaded Dead Man's Release
