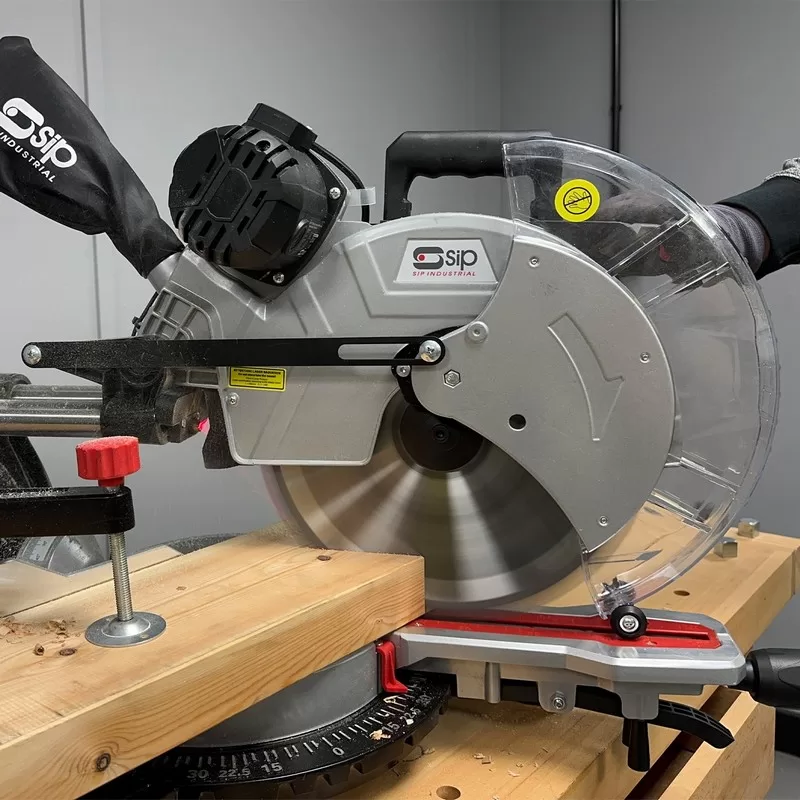

SIP 12" Sliding Compound Mitre Saw with Laser [01505]

The SIP 01505 is a high-capacity, professional-grade woodcutting saw engineered for tradespeople, commercial workshops, and advanced DIY woodworkers. Powered by a high-torque, belt-driven 1.8kW induction motor, this saw delivers smoother handling and quieter operation compared to traditional direct-drive models. Featuring dual-bevel functionality, an integrated laser guidance system, and a smooth slide mechanism, it easily manages deep cross-cuts, compound mitring, tenoning, and trenching profiles across large timber workpieces.

Key Features & Benefits

• High-Torque Belt-Driven Motor: Powered by a 1.8kW (2.4hp) motor running at 3,800 rpm. The belt drive dampens vibration, runs quieter, and protects the motor from sudden shocks during heavy cuts.
• Large 12" 40-Teeth TCT Blade: Supplied with a premium 305mm tungsten carbide-tipped (TCT) blade designed for clean, rapid cutting through thick hardwoods, softwoods, and composite panels.
• Dual Bevel & Variable Mitre Range: Offers a comprehensive angle capacity with a 45° double bevel function (tilts both left and right) paired with a -45° to +45° mitre range on a heavy-duty rotating table with pre-set positive index stops.
• Precision Laser Guide Assembly: Projects a highly visible, razor-sharp line directly onto the workpiece to mark the exact blade path for swift, accurate alignments.
• Smooth Sliding Extension Rails: Built with parallel sliding rails that dramatically extend the horizontal cutting width up to 330mm, making it ideal for wide shelving, decking boards, and structural joists.
• Adjustable Depth Stop (Trenching): Features an easily calibrated depth-cut limiter, allowing the operator to stop the blade downward travel mid-stroke to execute clean trenching, dado, and tenon joinery cuts.
• Soft-Start Trigger Handle: Outfitted with an industrial "grip 'n' trigger" control handle featuring slow-start electronics to prevent aggressive jerking on startup.
• Automatic Safety Guard: Built with an integrated transparent lower blade guard that automatically retracts during the chop stroke and safely encloses the teeth as the saw head is raised.
• 2-Year Warranty: Backed by the standard SIP 2-Year Standard Silver Warranty for guaranteed commercial trade reliability.

Technical Specifications

• Motor Output Power: 1.8 kW (2.4 hp)
• Electrical Input Supply: 230V ~ 50Hz (Standard 13A Plug)
• No-Load Blade Speed: 3,800 rpm
• Blade Dimensions: 305mm Diameter / 30mm Bore Size / 40-Teeth TCT
• Blade Thickness Parameters: 1.8mm minimum plate / 2.8mm maximum kerf
• Mitre Capacity Range: -45° / 0° / +45°
• Bevel Capacity Range: Up to 45° (Left and Right Dual Configuration)
• Nett Weight: 16.00 kg
• Gross (Packaged) Weight: 18.60 kg
• Product Dimensions (H x W x D): 600 x 650 x 890mm
• Packaged Dimensions (H x W x D): 530 x 920 x 575mm

Component Cutting Capacities (Fully Copy-Pastable)

• Straight Cut (00° x 00°): 330mm x 105mm
• Mitre Cut (45° x 00°): 230mm x 105mm
• Left Bevel (00° x 45°): 330mm x 60mm
• Right Bevel (00° x 45°): 230mm x 33mm
• Left Compound Mitre (45° x 45°): 230mm x 60mm
• Right Compound Mitre (45° x 45°): 230mm x 33mm
